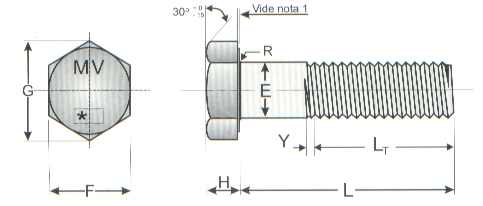

Parafusos Sextavado Pesado ASTM-A307 Grau B
REFERÊNCIA ASME B18.2.1 - 1996 (Tabela 3)
|
Diâmetro Nominal |
E | F | G | H | R |
LT L<ou =6"L>6" |
|||||
| máx. | máx. | min. | máx. | min | máx. | min. | máx. | min. | básico | básico | |
| 1/2" | 13,081 | 22,225 | 21,590 | 25,654 | 24,612 | 9,245 | 7,67 | 0,762 | 0,254 | 31,75 | 38,1 |
| 5/8" | 16,306 | 26,974 | 26,187 | 31,165 | 29,845 | 11,277 | 9,601 | 1,524 | 0,508 | 38,1 | 44,45 |
| 3/4" | 19,507 | 31,750 | 30,784 | 36,652 | 35,128 | 13,309 | 11,557 | 1,524 | 0,508 | 44,45 | 50,8 |
| 7/8" | 22,733 | 36,525 | 35,407 | 42,164 | 40,360 | 15,341 | 13,487 | 1,524 | 0,508 | 50,8 | 57,15 |
| 1" | 25,958 | 41,275 | 40,005 | 47,650 | 45,618 | 17,780 | 15,011 | 2,286 | 0,762 | 57,15 | 63,5 |
| 1.1/8" | 29,184 | 46,024 | 44,602 | 53,162 | 50,850 | 19,812 | 16,713 | 2,286 | 0,762 | 63,500 | 69,850 |
| 1.1/4" | 32,435 | 50,800 | 49,225 | 58,648 | 56,108 | 22,225 | 19,024 | 2,286 | 0,762 | 69,850 | 76,200 |
| 1.3/8" | 35,661 | 55,575 | 53,822 | 64,160 | 61,366 | 23,876 | 20,574 | 2,286 | 0,762 | 76,200 | 82,550 |
| 1.1/2" | 38,887 | 60,325 | 58,420 | 69,646 | 66,598 | 26,314 | 22,910 | 2,286 | 0,762 | 82,550 | 88,900 |
| 1.3/4" | 45,339 | 69,850 | 67,614 | 80,645 | 77,089 | 30,378 | 26,771 | 3,048 | 1,016 | 95,250 | 101,600 |
| 2" | 51,790 | 79,375 | 76,835 | 91,643 | 87,604 | 35,255 | 29,845 | 3,048 | 1,016 | 107,950 | 114,300 |
| 2.1/4" | 58,547 | 88,900 | 86,055 | 102,641 | 98,094 | 39,319 | 33,705 | 4,826 | 1,524 | 120,650 | 127,000 |
| 2.1/2" | 64,998 | 98,425 | 95,250 | 113,639 | 108,585 | 43,383 | 37,566 | 4,826 | 1,524 | 133,350 | 139,700 |
| 2.3/4" | 71,805 | 107,950 | 104,444 | 124,637 | 119,075 | 47,472 | 41,452 | 4,826 | 1,524 | 146,050 | 152,400 |
| 3" | 78,257 | 117,475 | 113,665 | 135,636 | 129,590 | 52,324 | 46,101 | 4,826 | 1,524 | 158,750 | 165,100 |
|
Comprimento Nominal |
Diâmetro Nominal | |||||
| 1/4" a 3/8" | 7/16" e 1/2" | 9/16"a 3/4" | 7/8" e 1" | 1.1/8" a 1.1/2" | Acima de 1.1/2" | |
| Até1" |
+0,508 -0,762 |
+0,508 -0,762 |
+0,508 -0,762 |
--------- | --------- | --------- |
|
Acima de 1"até 2.1/2" |
+0,508 -1,016 |
+1,016 -1,524 |
+1,524 -2,032 |
+2,032 -2,540 |
+3,048 -3,048 |
+4,572 -4,572 |
|
Acima de 2.1/2"até 4" |
+1,016 -1,524 |
+1,524 -2,032 |
+2,032 -2,540 |
+2,54 -3,556 |
+4,064 -4,064 |
+5,08 -5,080 |
|
Acima de 4" até 6" |
+1,524 -2,540 |
+2,032 -2,540 |
+2,540 -2,540 |
+3,048 -4,064 |
+4,572 -4,572 |
+5,588 -5,588 |
| Acima de 6" |
+2,54 -4,572 |
+3,048 -4,572 |
+3,556 -4,572 |
+4,064 -5,080 |
+5,588 -5,588 |
+6,096 -6,096 |
